DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

Brand Name : A.L

Model Number : AL-SL5050T120

Certification : UL,CE,RoHS

Place of Origin : Guangdong,China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 40,000meters per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)

Power : 28.8W/M

FPC Width : 15mm

LED Qty : 120pcs/M

Input : 12V;24V

IP Grade : IP20

LED Type : 5050 SMD LED

Length : 5m/Reel

Lumen : 20 ~22lm/SMD

Warranty : Two years

Contact Now

Felxible Strip Lights DC12 / 24V For Shopping Mall Lighting With Double Line 5050 LED

Quick Details

LED Chip:5050SMD
LED Qty:120pcs/m
Voltage:DC12V,DC24V
FPC Width:15mm
Lumen:22lm/SMD
Power:28.8W/m
Color:Warm White
LED Array:Double line

Parameters

Model No.	AL-SL5050T120-WW
Light Source	SMD 5050
Input Voltage	28.8W/m
Dimension	15mm x 5m
FPC Width	15MM
Lumen	22lm/pcs
Color Temperature	2800K~3000K
Color	Warm White
Lifetime	50000H
Beam Angle	120degree
LED Qty	120
Cutting Length	50mm
Operation Temperature	-20⁰C ~50⁰C
Dimmable	YES
FPC Color	White
PCB	Flexible
IP Grade	IP20
Carton Package Qty	80reel
Certification	UL,CE,RoHS
Warranty	2years

Features

12/24V low voltage,safe to install.
120 pcs 5050 led,high lumen,20lm/led.
Pure copper PCB,excellent heat dissipation,long life time.
3M tape on the back,easy to install.
50mm cuttable,flexible application.

Models Optional

Model Number	LED Qty	Power	FPC Width	Color
AL-SL5050T120WW-12	120pcs/m	28.8W/m	15mm	Warm White

Installation Warm Tip

(1) The max running length for each line is 5 meters. Please install the strips in parallel when length is

more than 5 meteres.

(2) Usually most of the power supply has a efficiency between 80%-95%, so whenchoosiing the power supply, the total watts of the strips should be smaller than 80% of the rate power of the led strips.

Application

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting

5. Shopping mall lighting

Warm Tips

This product is 12/24VDC power,pls don't connect the strips directly to high voltage.
This strip could be IP65,IP67,IP68 if need waterproof pls contact our sales consult.
Pls consider the voltage drop when install.

Dimension

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

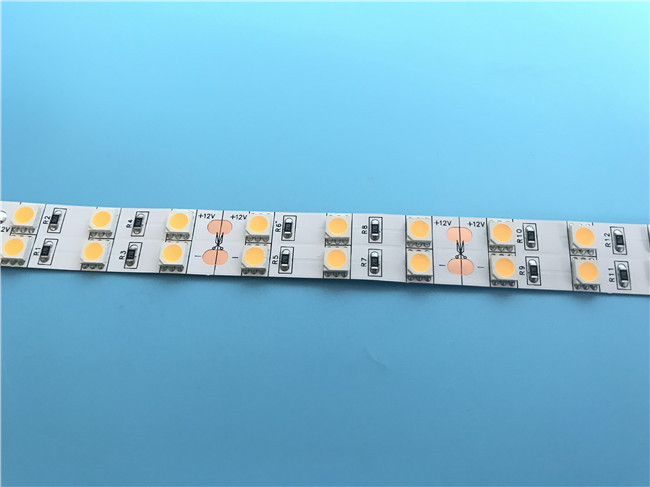

Photoes

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
